Modern Design Modular Home Prefab Living House Panelized Home Kits With AS/US Standard

 5 bedrooms  6 Bathroom  2 Living 0 Garage 424.81SQM

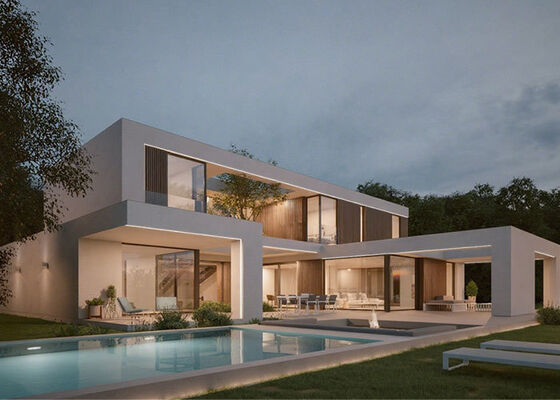

The Lucca House takes a different approach to villa design. Its H-shaped floor plan creates distinct zones while keeping the home connected. The dimensions are 18 by 8.5 meters, with a total floor area of around 425 square meters across two levels.

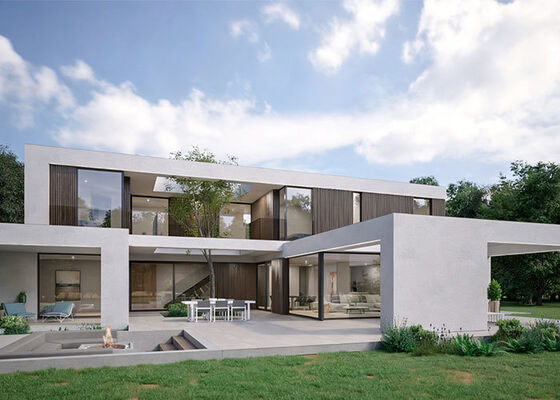

What the H-Shape Does The layout separates the main living areas into two volumes linked by a central corridor. This gives the house a sense of depth and allows light to reach more interior spaces. It also creates natural outdoor areas within the structure. The front of the house has several terraces near the entrance, giving you places to sit outside without leaving the property.

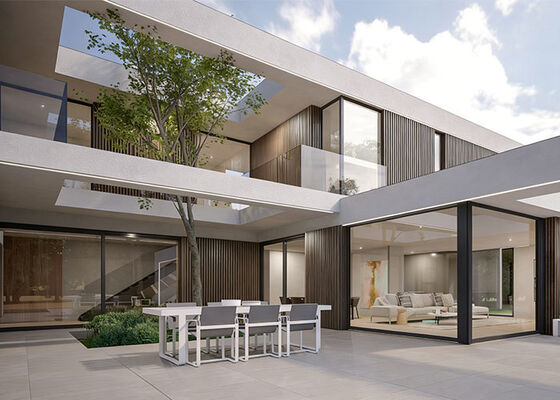

Materials and Appearance The exterior is finished in light grey, which gives the house a neutral and understated look. Vertical timber louvers in a wood grain finish are placed on parts of the facade. They add texture and some visual contrast without drawing too much attention. These louvers also filter sunlight during certain times of the day.

Floorplan:

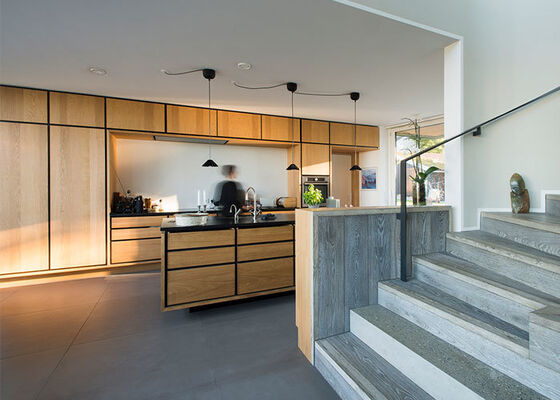

How the Spaces Are Arranged On the ground floor, the layout is straightforward. One side holds a larger bedroom. On the opposite side, you have the living room and kitchen. These two zones are connected by an open eave corridor, which provides covered access between them. Upstairs, the layout is more compact. There are three bedrooms, each with its own bathroom, plus a shared living area. This setup gives everyone upstairs their own space while still having a common room to use.

• Product parameters:



  Name:	Lucca House
  Size:	18000×8450mm
  Ground floor area:	266.55sqm
  First Floor Area:	158.26sqm
  Total Area:	424.81sqm
  Model:	DPBL-26-16





Applications:

Hotel, House, Office, etc.

Product Description:

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:

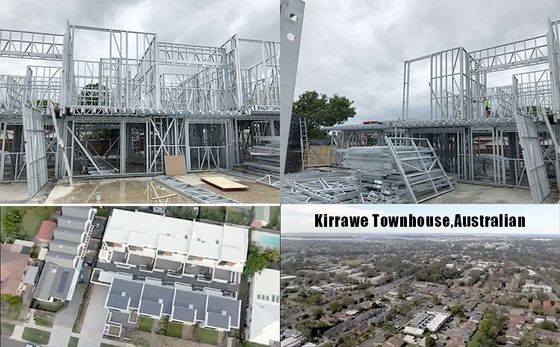

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.

The Riga House is more than a design; it is a testament to integrated craftsmanship brought to life by DeepBlue SmartHouse. We specialize in translating architectural visions into tangible reality by providing the complete material ecosystem and technical expertise required for such bespoke projects. From the high-performance window systems that define this home's character to the underlying structural integrity, every component is sourced and coordinated under our rigorous oversight.


Specifications:

ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.

The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
